Implementing a HTTPS Web Server for GIS-Adapter

ยท

7 min read

The GIS Adapter facilitates the sharing of an electric network model from a Smallworld source system to an ADMS system. This process ensures that the network model is managed and updated centrally, allowing for reuse across various applications. The GIS Adapter product supports the initial transfer of network data into the target system and handles subsequent incremental updates as the source system's network evolves. Defined workflows streamline the entire network model exchange, enabling the identification and resolution of any discrepancies to maintain synchronization between the network models.

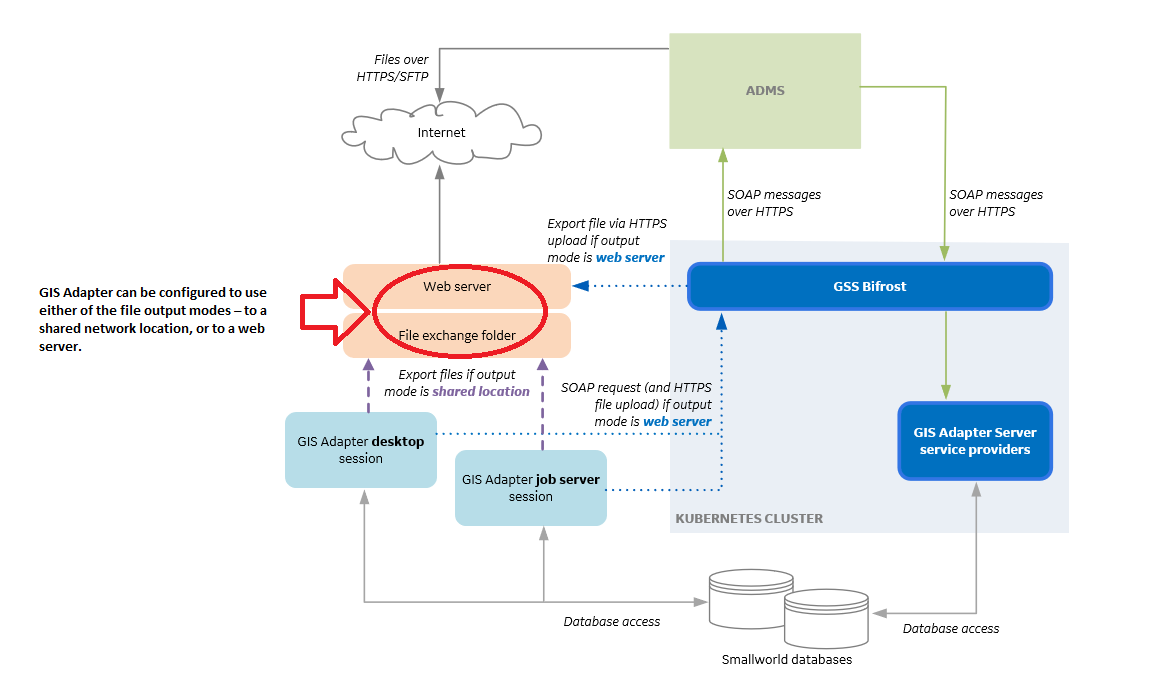

The exchange of data supported by two modes.

  1. Export to a shared network location which is accessible by both GIS Adapter and the ADMS. We can use this output mode only when the job server runs in a Windows environment, that is, when the job server is deployed outside the Kubernetes cluster.

  2. Uploading to an HTTPS file web server. This supports HTTPS REST PUT API requests to write files by GIS Adapter, and HTTPS REST GET API requests or SFTP protocol for retrieval by the ADMS. In this mode, GIS Adapter directly uploads files to the HTTPS REST-based file server endpoint via the Bifrost in the GSS framework. We must use this file output mode when the job server is deployed as a pod within the Kubernetes cluster.

In my experience, organizations often opt for a shared network location that's accessible to both GIS and ADMS systems. However, it's common for GIS and ADMS to reside in separate networks, necessitating additional processes to transfer files between them without disrupting ADMS web service responses. This introduces complexity and maintenance challenges, particularly when personnel transition between roles. While this approach may seem straightforward initially, it can lead to various unnecessary issues for stakeholders. The primary reason for companies choosing this option is often a shortage of experienced Kubernetes professionals.

Kubernetes has undoubtedly revolutionized the way we deploy and manage containerized applications, offering scalability, high availability, and portability at scale. However, its complexity and operational overhead pose significant challenges, especially for small teams or organizations with limited resources. By carefully weighing the pros and cons of Kubernetes and investing in proper training and infrastructure, you can harness its power to streamline your application deployment and operations.

Regrettably, GE does not provide a preconfigured HTTPS Web Server for GIS Adapter, prompting the need for this article. Here, we will utilize the nginx official image to establish a file web server for hosting extracted CIM files from GIS Adapter job engine sessions. Without delay, let's delve into the implementation.

Steps

It is presumed that you possess the requisite expertise for deploying GSS and GIS Adapter.

  • Create a GSS certificate with a Subject Alternative Name (SAN) for our NGINX deployments.

    ๐Ÿ’ก
    In this article, we are deploying the File WebServer on https://nginx.kube-rhel-server:30443. You will need to adjust the code according to the Subject Alternative Name (SAN) used in the certificate creation for nginx.
    ๐Ÿ’ก
    If you're generating a new certificate in an environment where a GSS production instance is operational, you must recreate the bifrost-ingress-tls secret within the GSS production namespace or whichever namespace you deployed the GSS to. Additionally, if your deployment is on-premises, you'll need to recreate the nexus-tls secret in the nexus namespace.
    ๐Ÿ’ก
    You have the option to deploy Nginx without creating a new certificate, but you'll need to modify the bifrost ingress accordingly. Additionally, you should remove the cim-fserver-ingress definition from the YAML file provided below. I refrained from pursuing this approach due to GE's recommendation to keep custom deployments separate from the deployments GE provides. Nonetheless, it would have been simpler to proceed with this option otherwise.
  • Update the environment variables for the Desktop Sessions to align with the new web endpoint.

      SW_GISA_OUTPUT_MODE=web_endpoint
      SW_GISA_OUTPUT_PATH=gisa_file_transfer
      SW_GISA_WEB_PATH=https://nginx.rhel-k8s-server:30443/upload/

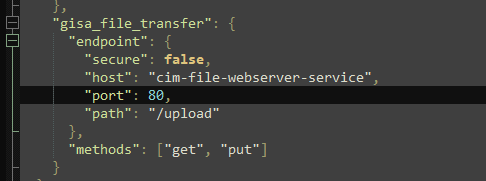

  • Revise the server_config_gis_adapter.json file located in the Bifrost config directory within Kubernetes (K8s).

  • Generate a file named cim-file-webserver.yaml containing the following content.

  •             ---
                apiVersion: v1
                kind: Namespace
                metadata:
                  creationTimestamp: null
                  name: cim-nginx
                spec: {}
                status: {}
                ---
                apiVersion: apps/v1
                kind: Deployment
                metadata:
                  labels:
                    app: nginx
                  name: nginx
                  namespace: cim-nginx
                spec:
                  replicas: 1
                  selector:
                    matchLabels:
                      app: nginx
                  strategy:
                    rollingUpdate:
                      maxSurge: 25%
                      maxUnavailable: 25%
                    type: RollingUpdate
                  template:
                    metadata:
                      labels:
                        app: nginx
                    spec:
                      containers:
                      - image: nginx
                        volumeMounts:
                        - name: nginx-config
                          mountPath: /etc/nginx/conf.d
                        - name: nginx-html-cm
                          mountPath: /usr/share/nginx/html
                        - name: nginx-upload
                          mountPath: /usr/share/nginx/upload
                        imagePullPolicy: IfNotPresent
                        name: nginx
                        resources: {}
                        terminationMessagePath: /dev/termination-log
                        terminationMessagePolicy: File
                      dnsPolicy: ClusterFirst
                      restartPolicy: Always
                      securityContext: {}
                      terminationGracePeriodSeconds: 30
                      volumes:
                      - name: nginx-config
                        configMap:
                          name: nginx-config
                      - name: nginx-html-cm
                        configMap:
                          name: nginx-html-cm
                      - name: nginx-upload
                        persistentVolumeClaim:
                          claimName: nginx-pvc-claim
                ---
                apiVersion: v1
                kind: PersistentVolumeClaim
                metadata:
                  name: nginx-pvc-claim
                  namespace: cim-nginx
                spec:
                  storageClassName: nfs-storage-class
                  accessModes:
                    - ReadWriteMany
                  resources:
                    requests:
                      storage: 5Gi
                ---
                apiVersion: v1
                data:
                  default.conf: |+
                    server {
                        listen       80;
                        listen  [::]:80;
                        server_name  localhost;
                        underscores_in_headers on;

                        location /cim-server {
                            root   /usr/share/nginx/html;
                            index  index.html index.htm;
                            rewrite ^/cim-server?$ /index.html break;
                        }

                        location ~ "/upload/([0-9_a-zA-Z-.]*)$" {
                           root   /usr/share/nginx;
                           client_body_temp_path  /tmp;
                           dav_methods  PUT DELETE MKCOL COPY MOVE;
                           create_full_put_path   on;
                           dav_access             group:rw  all:r;
                           client_body_in_file_only on;
                           client_max_body_size 500M;
                           autoindex on;
                           autoindex_exact_size off;
                           autoindex_format html;
                           autoindex_localtime on;
                          }

                        error_page   500 502 503 504  /50x.html;
                        location = /50x.html {
                            root   /usr/share/nginx/html;
                        }
                    }

                kind: ConfigMap
                metadata:
                  creationTimestamp: null
                  name: nginx-config
                  namespace: cim-nginx
                ---
                apiVersion: v1
                data:
                  index.html: |+
                    <!DOCTYPE html>
                    <html>
                    <head>
                    <title>Welcome to nginx!</title>
                    <style>
                        body {
                            width: 35em;
                            margin: 0 auto;
                            font-family: Tahoma, Verdana, Arial, sans-serif;
                        }
                    </style>
                    </head>
                    <body>
                    <h1>Welcome to nginx!</h1>
                    <p>If you see this page, the nginx web server is successfully installed and
                    working. Further configuration is required.</p>

                    <p>For online documentation and support please refer to
                    <a href="http://nginx.org/">nginx.org</a>.<br/>
                    Commercial support is available at
                    <a href="/upload/">Cim Extracts</a>.</p>

                    <p><em>Thank you for using nginx.</em></p>
                    </body>
                    </html>
                  50x.html: |+
                    <!DOCTYPE html>
                    <html>
                    <head>
                    <title>Error</title>
                    <style>
                    html { color-scheme: light dark; }
                    body { width: 35em; margin: 0 auto;
                    font-family: Tahoma, Verdana, Arial, sans-serif; }
                    </style>
                    </head>
                    <body>
                    <h1>An error occurred.</h1>
                    <p>Sorry, the page you are looking for is currently unavailable.<br/>
                    Please try again later.</p>
                    <p>If you are the system administrator of this resource then you should check
                    the error log for details.</p>
                    <p><em>Faithfully yours, nginx.</em></p>
                    </body>
                    </html>
                kind: ConfigMap
                metadata:
                  creationTimestamp: null
                  name: nginx-html-cm
                  namespace: cim-nginx
                ---
                apiVersion: v1
                kind: Service
                metadata:
                  creationTimestamp: null
                  labels:
                    app: nginx
                  name: cim-file-webserver-service
                  namespace: cim-nginx
                spec:
                  ports:
                  - port: 80
                    protocol: TCP
                    targetPort: 80
                  selector:
                    app: nginx
                status:
                  loadBalancer: {}
                ---
                apiVersion: v1
                kind: Service
                metadata:
                  name: cim-file-webserver-service
                  namespace: eo-gisa
                spec:
                  type: ExternalName
                  externalName: cim-file-webserver-service.cim-nginx.svc.cluster.local
                ---
                apiVersion: networking.k8s.io/v1
                kind: Ingress
                metadata:
                  annotations:
                    kubernetes.io/ingress.class: nginx
                    nginx.ingress.kubernetes.io/configuration-snippet: |
                      more_set_headers "X-Content-Type-Options: nosniff";
                    nginx.ingress.kubernetes.io/proxy-read-timeout: "120"
                  generation: 1
                  name: cim-fserver-ingress
                  namespace: eo-gisa
                spec:
                  rules:
                  - host: nginx.rehl-k8s-server
                    http:
                      paths:
                      - backend:
                          service:
                            name: cim-file-webserver-service
                            port:
                              number: 80
                        path: /cim-server
                        pathType: Prefix
                      - backend:
                          service:
                            name: cim-file-webserver-service
                            port:
                              number: 80
                        path: /upload/
                        pathType: Prefix
                  tls:
                  - hosts:
                    - nginx.rehl-k8s-server
                    secretName: bifrost-ingress-tls
                status:
                  loadBalancer: {}
                ---

๐Ÿ’ก
Nginx will be deployed on port 80.
๐Ÿ’ก
In the provided code, the GSS namespace is set as eo-gisa, while the nginx deployment will be installed in the cim-nginx namespace. Please adjust these namespaces according to your environment's namespace configuration.
๐Ÿ’ก
The Nginx will be accessible from https://nginx.rehl-k8s-server:30443/cim-server
  • Apply the cim-file-webserver.yaml in GSS cluster

  •             Kubectl apply -f cim-file-webserver.yaml


After applying the manifest file, nginx pod should be running in cim-enginx namespace.

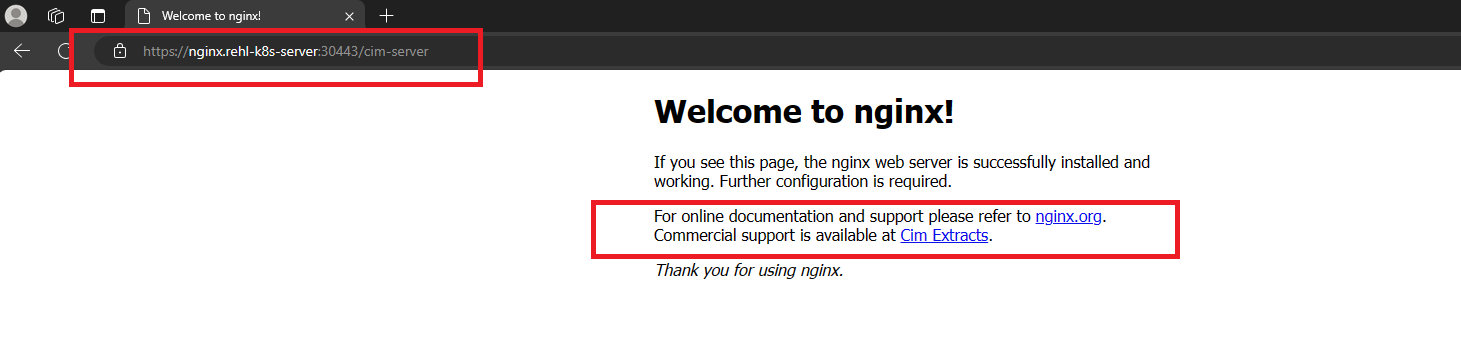

Completed! Accessing https://nginx.rehl-k8s-server:30443/cim-server should now present the Nginx welcome screen.

  • Initiate a desktop session and proceed to export a circuit.

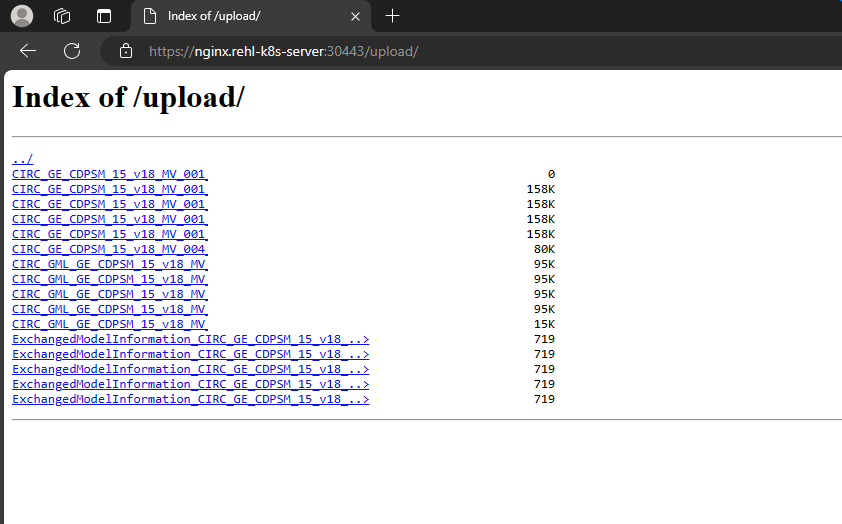

  • Upon successful export, clicking on "Cim Extracts" should display a list of all CIM files uploaded to nginx from the GIS Adapter Job session in K8s.

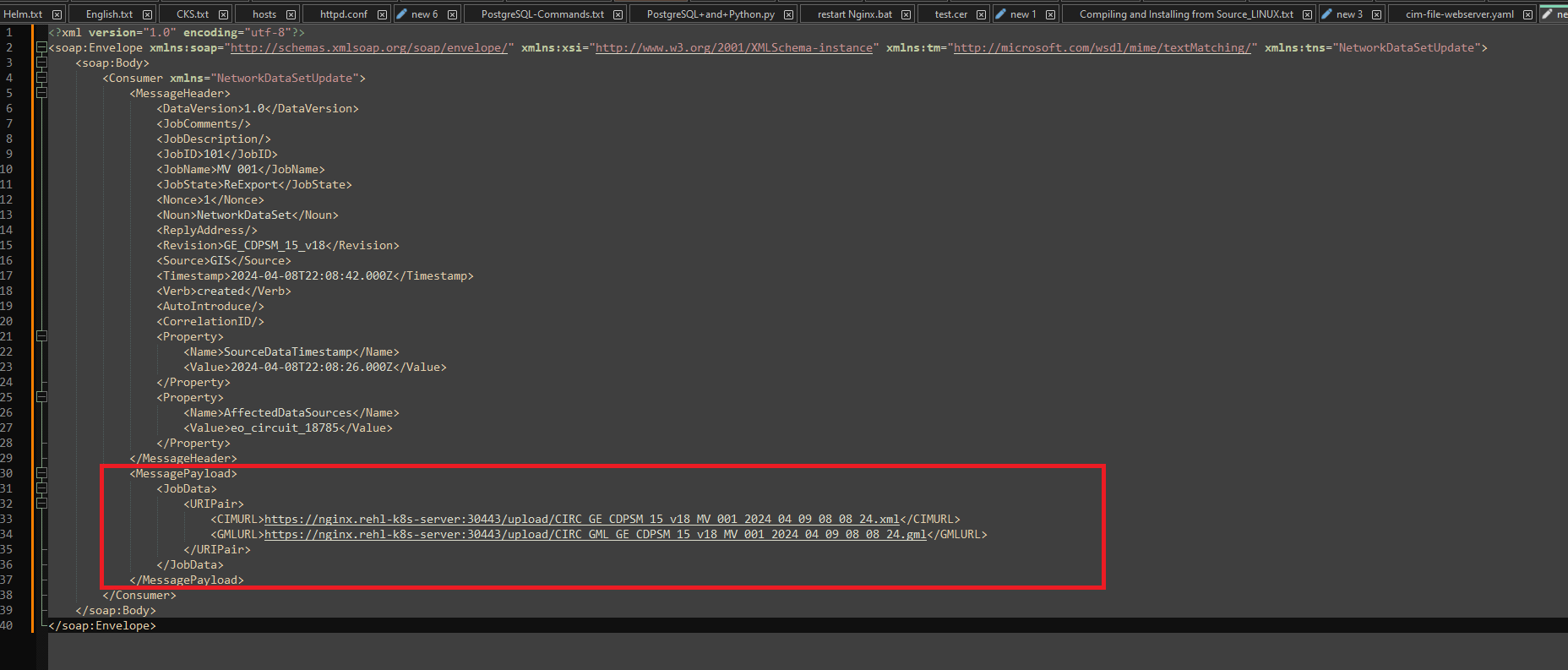

In a development environment where POA mock services are set up in SoupUI, you should receive the consumer request and be capable of verifying the new download URL sent to ADMS.

This demonstration underscores the simplicity of working with Smallworld and Kubernetes. Kudos to GE for pioneering Kubernetes integration for Smallworld applications.
